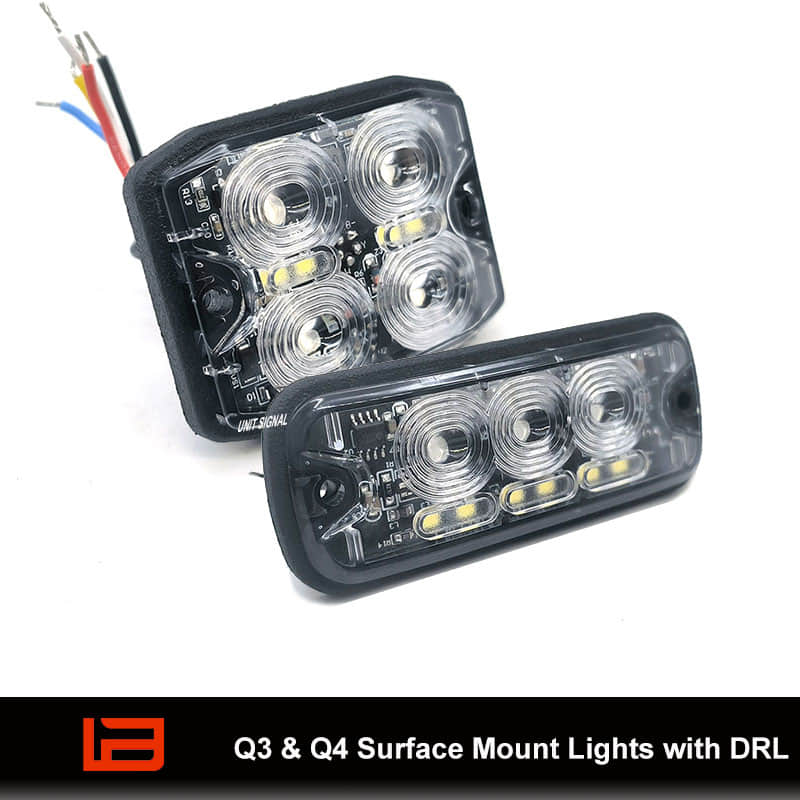

Q3 & Q4 Surface Mount Lights with DRL
Q3 surface mount lights with 3 Pcs 3W CREE LEDs and 6 Pcs 0.5W white LEDs for DRL. Square Q4 lights with 4 Pcs 3W CREE or Osram LEDs and 4 Pcs 0.5W white LEDs for DRL. Compliant with ECE R65 and R10, SAE J595 class 1.
- LED Power: Q3: 3 Pcs 3W CREE LEDs and 6 Pcs 0.5W white LEDs for DRL; Q4: 4 Pcs 3W CREE or Osram LEDs and 4 Pcs 0.5W white LEDs for DRL
- Lens: Fresnel lens
- LED Lifespan: 100000H
- Flash Pattern: Q3: 18; Q4: 19
- Input Voltage: DC 12-24V
- Max Power: Q3: 9W; Q4: 12W
- Average Current Draw: /
- Colour Available: single color
- Ambient Temperature: -30--+70℃
- Waterproof: IP67
- Product Dimension: Q3: 86.5 x 35.5 x 9.8mm; Q4: 57 x 45 x 11mm
- Mounting: Surface mount or 3M mount
- Certifications: ECE R65, R10 and SAE
- Wire: 5 wires
- Cable Length: 20cm
- Material: UV-resistant PC lens and PP material
- Net Weight: 30g
Features:
Q3: 3 Pcs 3W CREE LEDs and 6 Pcs 0.5W white LEDs for DRL
Q4: 4 Pcs 3W CREE or Osram LEDs and 4 Pcs 0.5W white LEDs for DRL
Compliant with ECE R65 and R10, SAE J595 class 1.
Powered by DC 12 -24V
Single color available
Surface mount or 3M mount for optional choice
New design program and easy to sync and alternate lights together
Built-in 18 selectable flash patterns
Pattern Memory available
IP-67 Standard, Weatherproof
Long-life LEDs rated to 100,000 hours of reliable operation
Warranty:
2-Year Warranty on All Emergency Vehicle Lighting Products*
Included in Box:
Q3 or Q4 strobe light
3M adhesive mount
Screws
Owner's Manual
Dimensions:
Q3: 86.5 x 35.5 x 9.8mm
Q4: 57 x 45 x 11mm
Interchangeable/Compatible with:
All automobiles and devices have a 12 or 24-volt DC power source.
