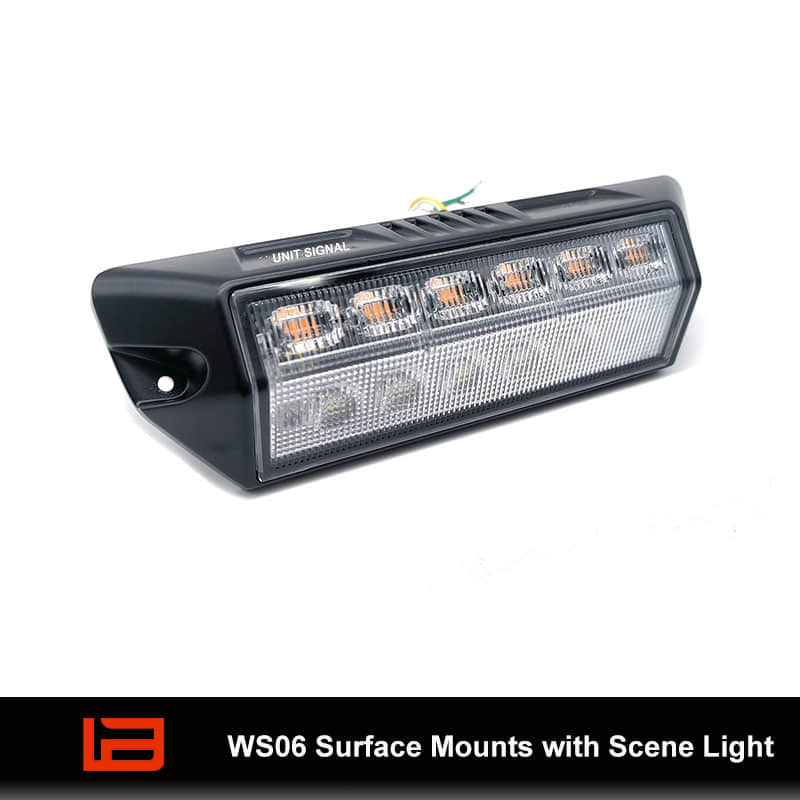

WS06 Surface Mounts with Scene Light
2 functions in 1 light, WS06 provides both powerful warning light with 19 flash patterns and wide-angle(105°) scene light for versatile application.
Request A QuoteFeatures:
Powered by 10-30V
2 functions in 1 light
Warning LED (6pcsx3W LEDs) with Scene LED (6pcsx4W LEDs)
19 Flash Patterns with Pattern Memory
Wide-angle(105°) for scene light
Meet ECE R65 Class 2 and SAE Class 1
Synchronization function between multiple units
Compactly sized for versatile application
Heavy-duty aluminum housing(white or black)
IP69K Standard
Weatherproof and vibration-resistant design
Reverse polarity protection
A lifespan of up to 100,000 hours
Warranty:
5 Year Warranty on All Emergency Vehicle Lighting Products
Included in Box:
WS06 surface mount light
Gasket
2 Screws
Owner's Manual
Dimensions:
179.7*60.9*28mm
Interchangeable/Compatible with:
All automobiles and devices are equipped with a 12 or 24-volt DC power source.
- LED Power: 3W LEDs
- Lens: TIR
- LED Lifespan: 100000H
- Flash Pattern: 19
- Input Voltage: 10-30V
- Max Power: 18W
- Average Current Draw: /
- Colour Available: single or split color
- Ambient Temperature: -30--+70℃
- Waterproof: IP69k
- Product Dimension: 179.7*60.9*28mm
- Mounting: Surface mount
- Certifications: ECE R10,R65 Class2, SAE J595 Class2, R148,CAT13
- Wire: 5 wires(positive, negative, pattern change, scene light, 50% power)
- Cable Length: 20cm
- Material: Aluminum alloy base,UV-resistant PC
- Net Weight: 350g
