M-Series TIR LED Grille and Surface Mount Lights

M-Series TIR LED Grille and Surface Mount Lights

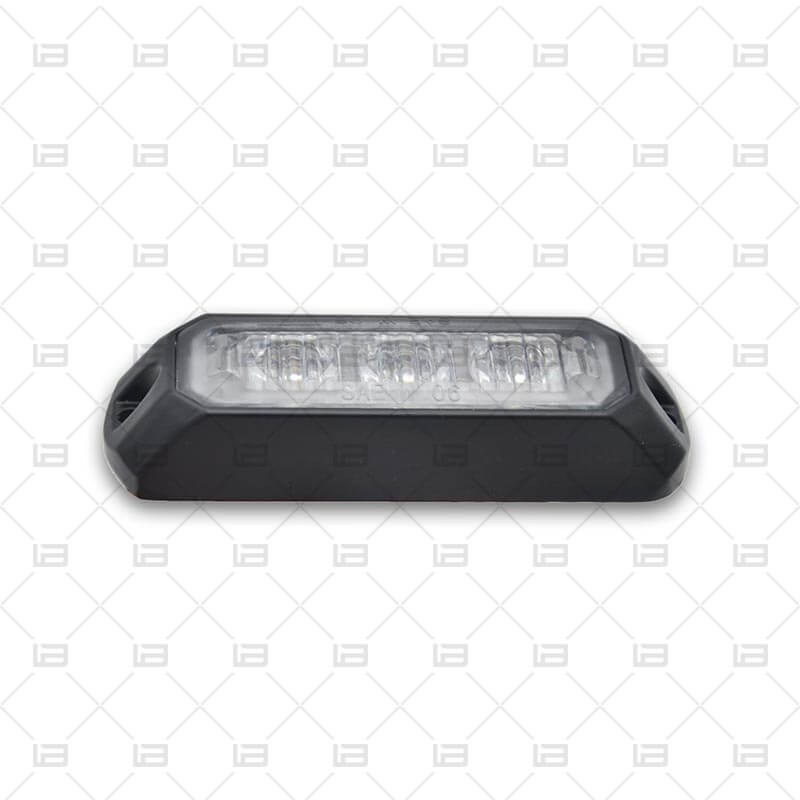

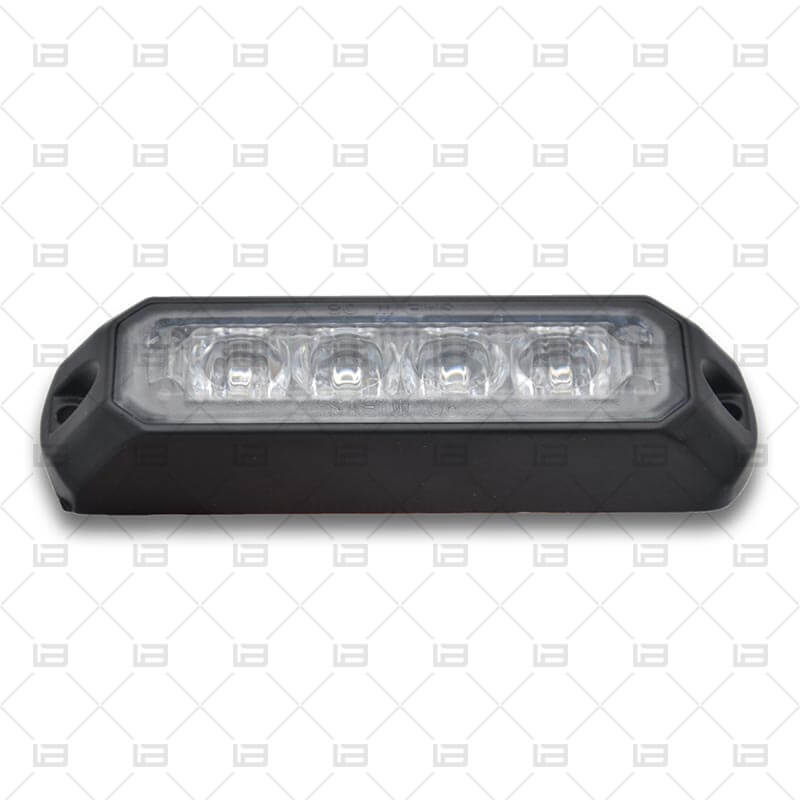

The M3,M4,M6 are the lights of the M Series with 3/4/6 Generation III 3-Watt LEDs in a durable, shatterproof black housing.

Request A Quote


Powered by 12-24V

3/4/6 high intensity LED with optic lenses

16 Flash Patterns with Pattern Memory (watch the video)

Synchronization between multiple units

Compactly sized for versatile application

Built in heat sink

Black flange included for protection and stealth

Virtually Out of Sight

Extremely Bright--Highly Visible when ON!

IP-67 Standard

Weatherproof ready for exterior mounting. (Not submersible)

Lifespan of up to 100,000 hours

Meets or Exceeds SAE J595 Standards



5 Year Warranty on All Emergency Vehicle Lighting Products


Included in Box:

M-series Grille and Surface LED Light


2 Screws

Owner's Manual



M6: 124.1mm LX27.6mm W x 16.2mm H

M4: 96.1mm LX27.6mm W x 16.2mm H

M3: 86.2mm LX27.6mm W x 16.2mm H


Interchangeable/Compatible with:

All automobiles and devices equipped with a 12 or 24 Volt DC power source.

  • LED Power: 3/4/6PCS 3W
  • Lens: TIR
  • LED Lifespan: 100000H
  • Flash Pattern: 16
  • Input Voltage: 12-24V
  • Max Power: 9/12/18W
  • Average Current Draw: 500mA@12.8V DC
  • Colour Available: R W A G B
  • Ambient Temperature: -30--+70℃
  • Waterproof: IP67
  • Product Dimension: 86.2/96.1/124.1mm LX27.6mm W x 16.2mm H
  • Mounting: Surface mount
  • Certifications: /
  • Wire: 1 pos, 1 Neg, 1 sync, 1 pattern,1 alt
  • Cable Length: 20cm
  • Material: Aluminum alloy base
  • Net Weight: 90g
