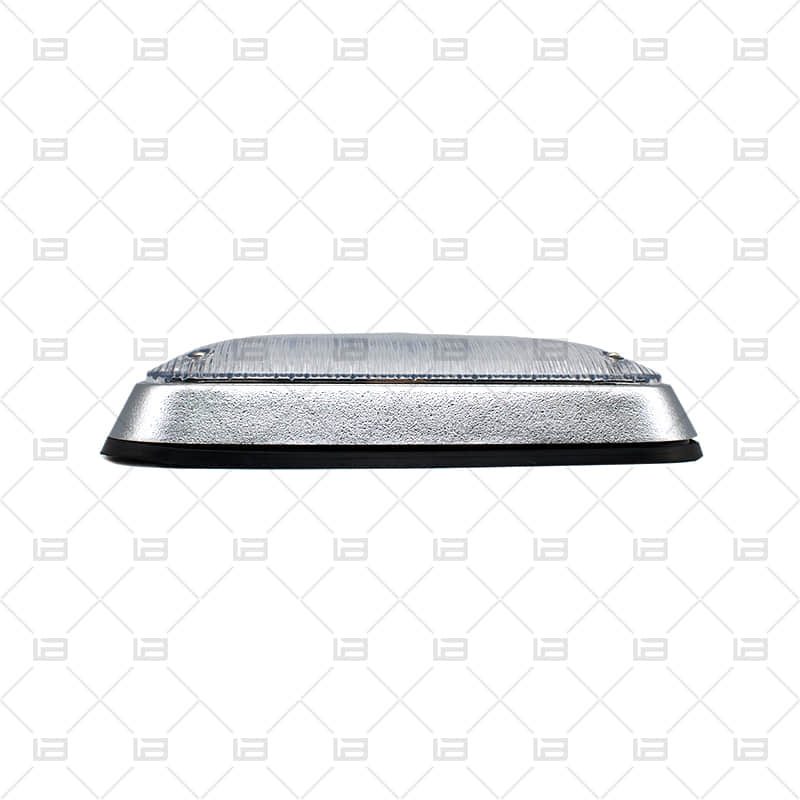

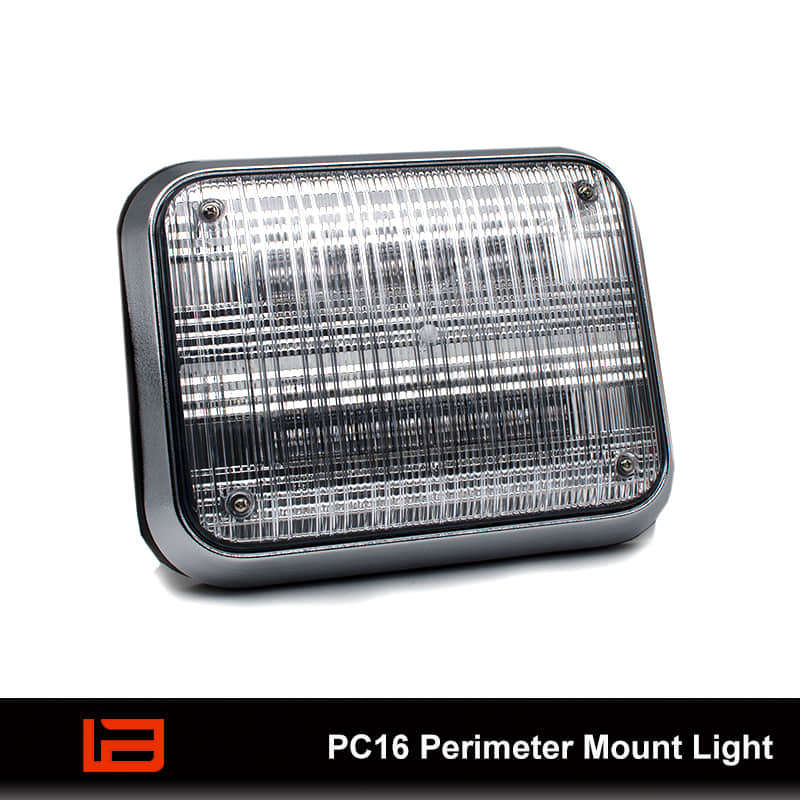

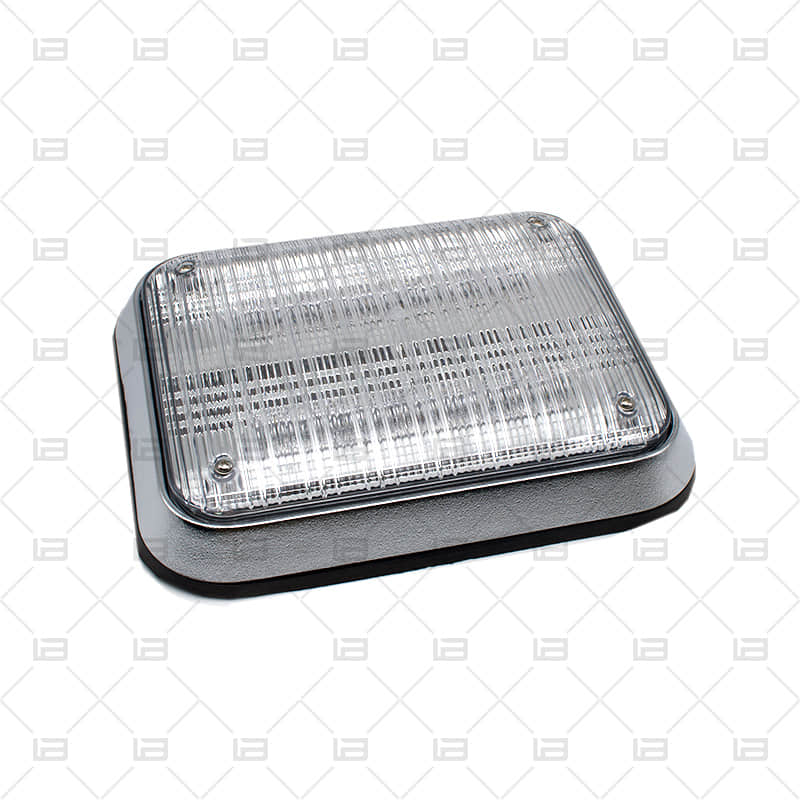

PC16 Perimeter Mount Lights

PC16 Perimeter Mount Lights

The PC16 perimeter Mount comes equipped with 16pcs 3-watt LEDs with chrome bezel and a low profile application perfect for fire/ambulance vehicle lighting.

Request A Quote


LED technology provides better lighting with far less amperage than halogen

Voltage 12 or 24 VDC

16 High power 3-watt LEDs

Available with up to 18 flash patterns

Single Colors or Split Color available

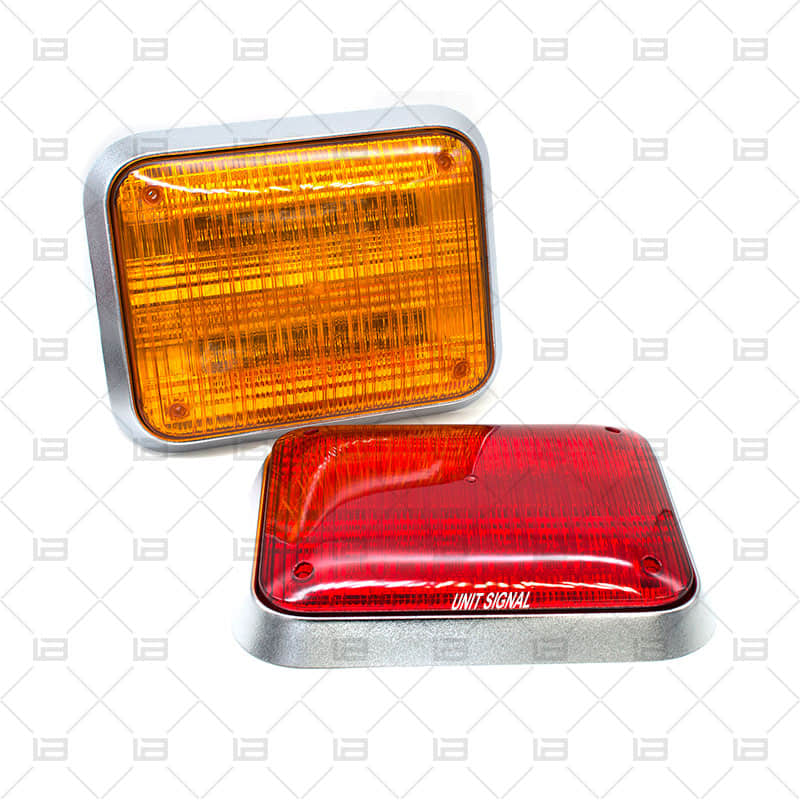

Amber, Red, Blue or Clear Lenses available

Easy to Install or Retrofit

Covered with rubber protector

Weather and vibration resistant

Sychronization between Multiple modules

Includes chrome bezel



5 Year Warranty on All Emergency Vehicle Lighting Products


Included in Box:

PC16 Perimeter light


Owner's Manual



268mm L x 212mm W x 55mm H


Interchangeable/Compatible with:

All automobiles and devices equipped with a 12 or 24 Volt DC power source.

  • LED Power: 16PCS 3W
  • Lens: /
  • LED Lifespan: 100000h
  • Flash Pattern: 18
  • Input Voltage: DC12V or DC24V
  • Max Power: 48W
  • Average Current Draw: /
  • Colour Available: LED:single or split color Lens:Amber/Red/Blue/Clear lens available
  • Ambient Temperature: /
  • Waterproof: IP67
  • Product Dimension: 268mm L x 212mm W x 55mm H
  • Mounting: Surface mount
  • Certifications: /
  • Wire: 4 core(Red wire: positive;Black wire: negative; Yellow wire: sync; white wire: flash pattern)
  • Cable Length: 20cm
  • Material: Aluminum alloy base,UV-resistant PC lens with chrome bezel
  • Net Weight: 1000g
