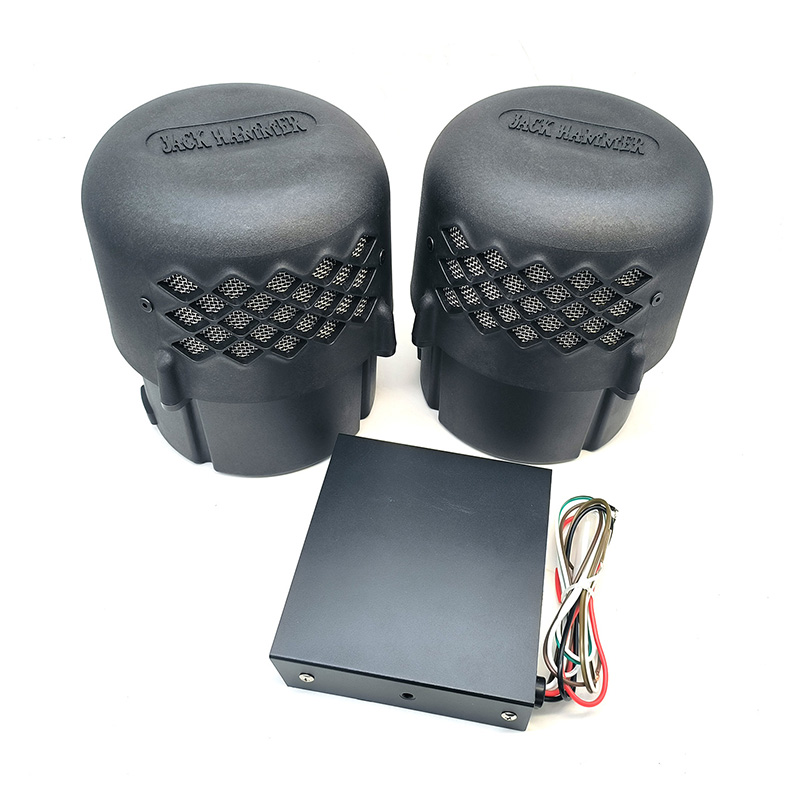

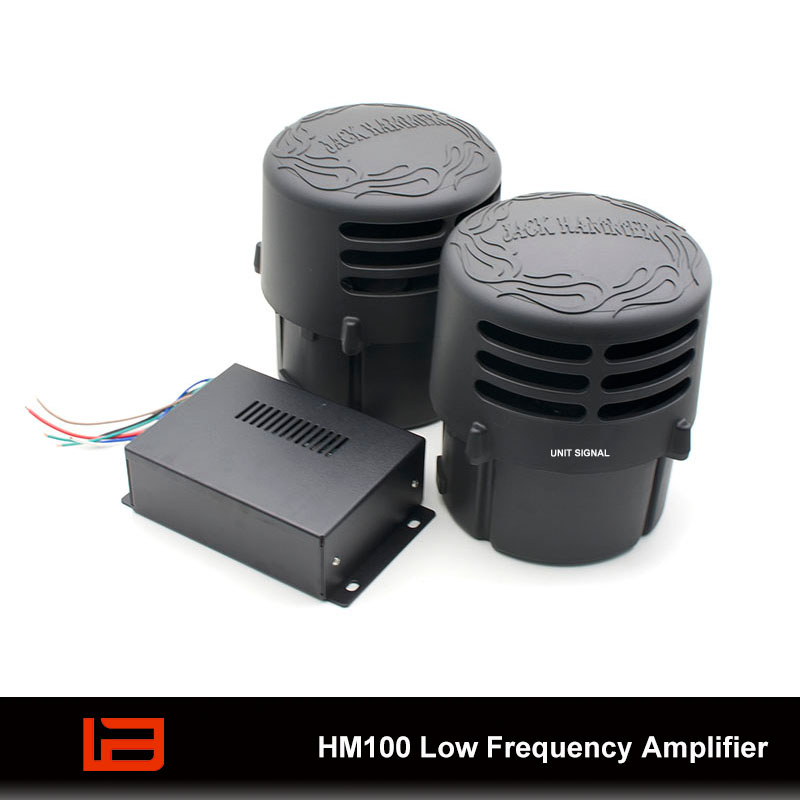

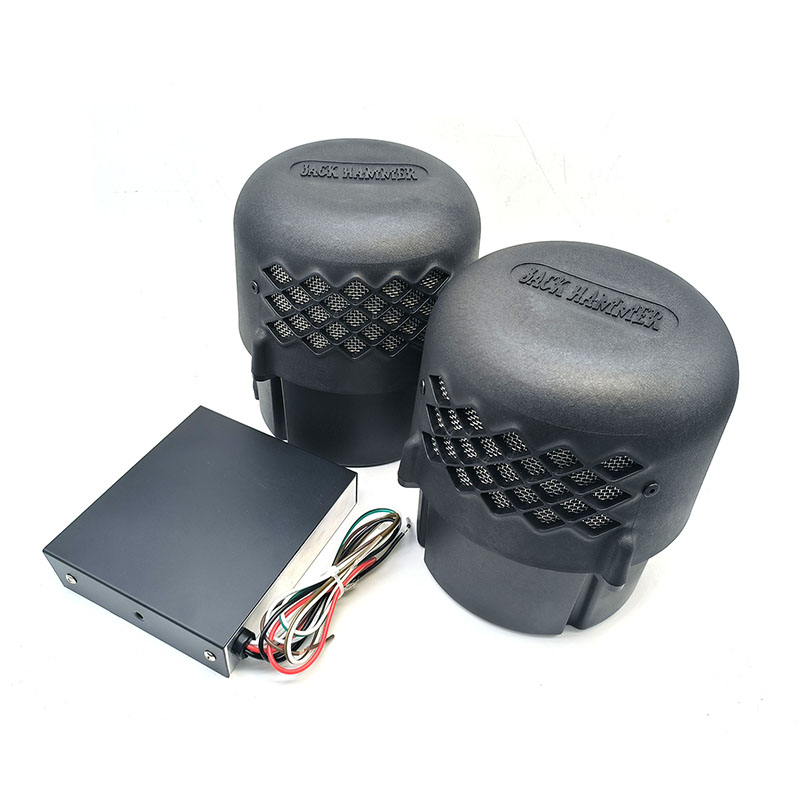

HM100 Low Frequency Amplifier
HM100 is a low-frequency siren speaker kit, together with a 100W Siren, that will add a supplemental warning to an emergency response vehicle.
- Input voltage: 9VDC to 15VDC
- Operating input current: 12A maximum
- Standby current: 0.015A nominal
- Operating temperature range: -30℃ to +65℃
- Low Frequency range: 182 to 400Hz
- High Frequency range: 500 to 1600Hz
- Output voltage: 30V
- Output Power: 100W
- Dimensions: Diameter 15.7cm D X 17cm D X 21.5cm H
Features:
1. Input voltage 9VDC to 15VDC
2. Operating input current 12A maximum
3. Polarity Negative-grounded systems only
4. Standby current 0.015A nominal
5. Operating temperature range -30℃ to +65℃
6. Low-Frequency range 182 to 400Hz
High-Frequency range 500 to 1600Hz
7. Output voltage 30V
8. Output Power 100W
9. Diameter 15.7cm D X 17cm D X 21.5cm Height
Please be advised that in order to activate the low-frequency tones of the HM100, the regular siren tone must be operating, as the tones outputted are based on the vehicle’s original siren system. Together, the system increases close proximity warning effectiveness by generating siren signals that better penetrate a vehicle’s interior.
The HM100 Amplifier comes equipped with two mounting brackets, which enable the unit to be mounted in a variety of positions. The unit has no user-operated controls on the amplifier, so it can be mounted underneath the seats, trunk, or in any other concealed area of a vehicle.
The amplifier must be installed in an adequately ventilated area. Never install near heater ducts or under the vehicle’s hood.
The HM100 speakers should be mounted securely using the supplied brackets, with the vents face downward, for maximum output.
