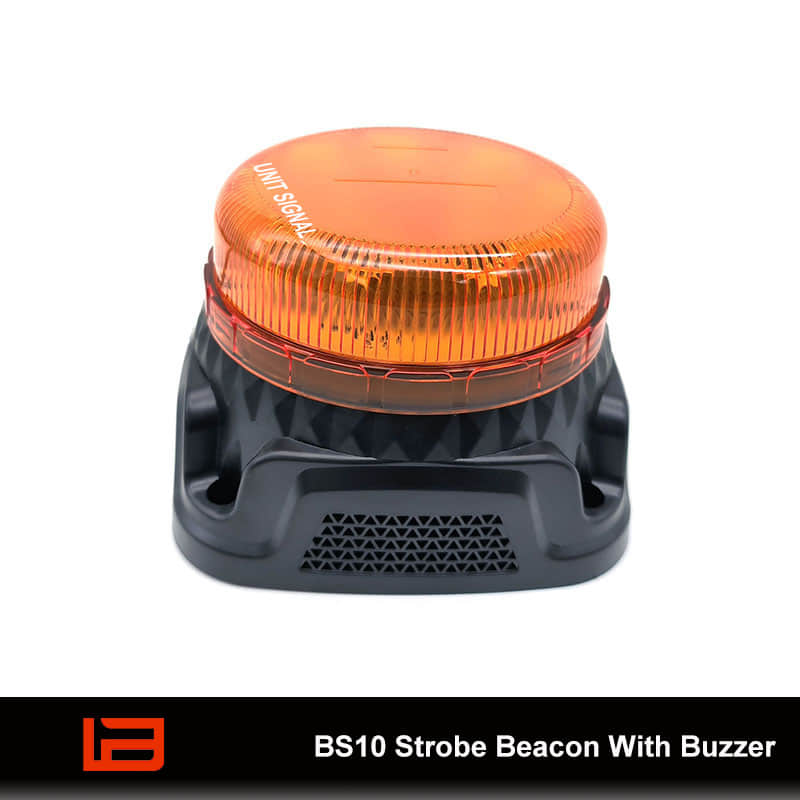

BS10 LED Strobe Beacon With Buzzer
There are 9 flash patterns for the BS10 LED Strobe Beacon. Built-in backup alarm with >100 dB speaker
- Input Voltage
- DC 12-24V
- Waterproof
- IP67
- Mounting
- permanent mount
BUILT FOR
YOUR APPLICATION.
Features:
Built-in back up alarm with >100 dB speaker
10pcs LEDs
With Buzzer(104 dB), one wire to control the buzzer
Low profile design
Amber colors LEDs available
9 flash patterns provide
IP67 waterproof designed
permanent mount available
A lifespan of up to 100,000 hours
UV-stabilized lens resists fading
Meet and exceed ECE R65 TA1; ECE R10
Warranty:
2-Year Warranty on All Emergency Vehicle Lighting Products*
Included in Box:
BS10 Beacon
Screws
Instruction
Dimensions:
Top⌀ 110mm* Bottom 130mm*85mmH
Interchangeable/Compatible with:
All automobiles and devices have a 12 or 24-volt DC power source.
TECHNICAL
SPECIFICATIONS.
| LED Power | 10pcs 3W LEDs |
|---|---|
| Lens | Amber |
| LED Lifespan | 100000H |
| Flash Pattern | 9 |
| Input Voltage | DC 12-24V |
| Max Power | 15W |
| Average Current Draw | / |
| Colour Available | amber color; |
| Ambient Temperature | -30--+70℃ |
| Waterproof | IP67 |
| Product Dimension | Top⌀ 110mm* Bottom 130mm*85mmH |
| Mounting | permanent mount |
| Certifications | ECE R65 TA1; ECE R10; |
| Wire | 4 wire (positive, negative,pattern change, Buzzer) |
| Cable Length | 20cm |
| Material | UV-resistant PC |
| Net Weight | / |
