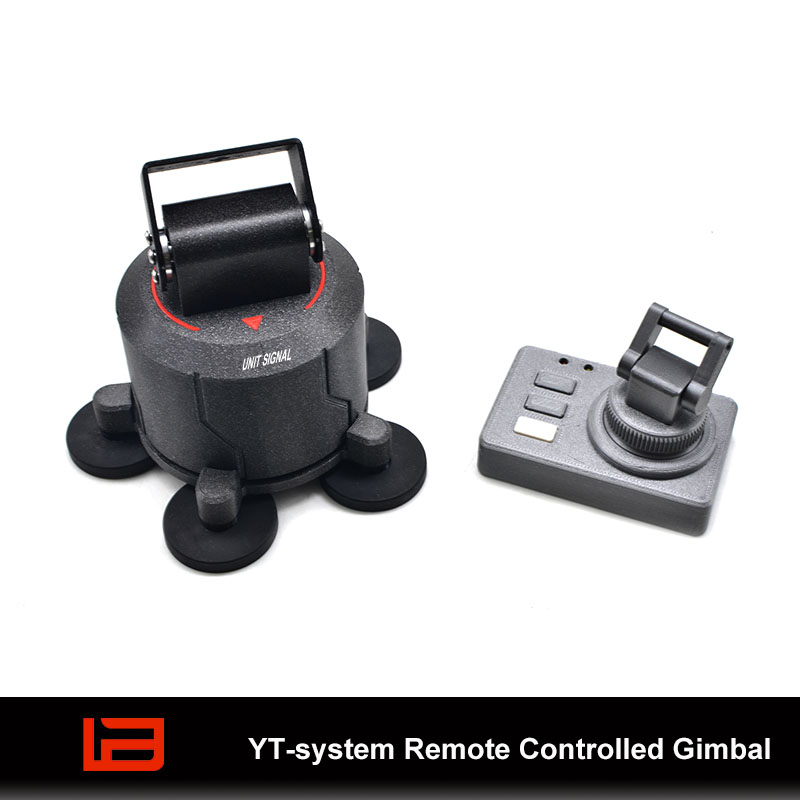

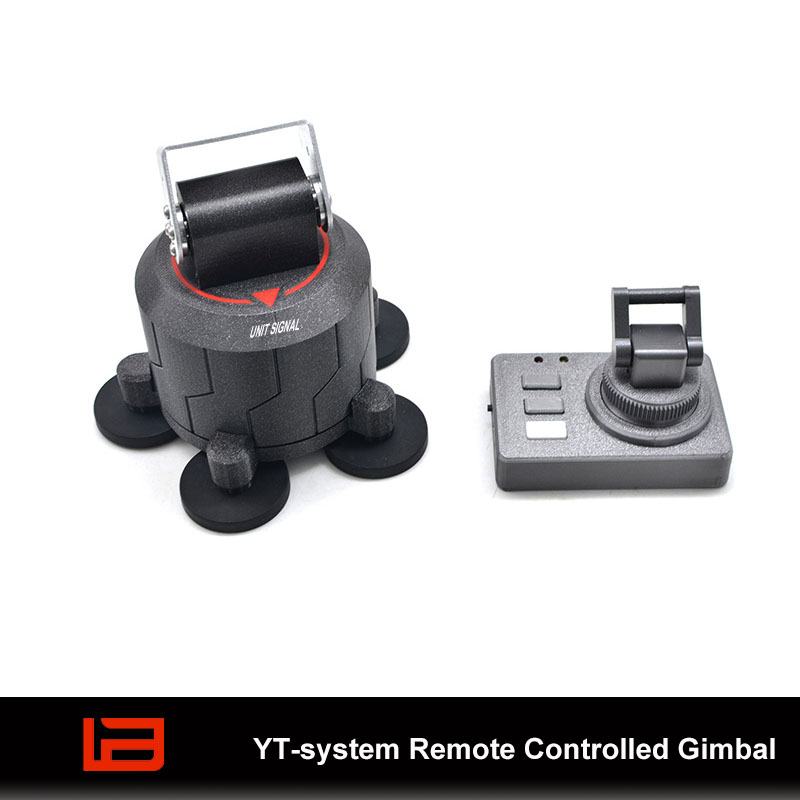

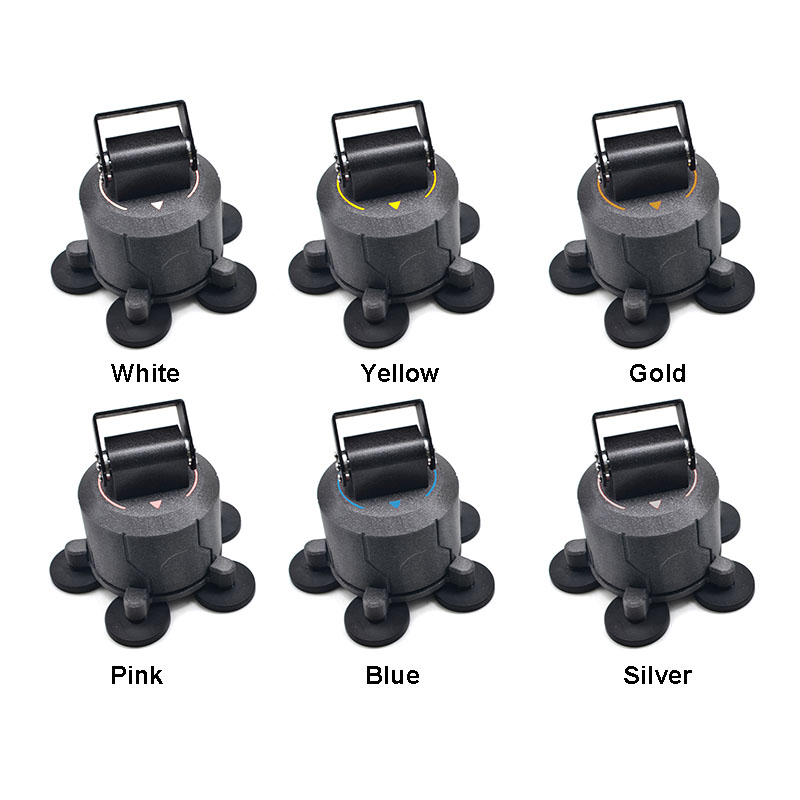

YT-system Remote Controlled Vehicle Gimbal Outdoor rated Magnetic mount
This remote-controlled vehicle-mounted gimbal is a highly stable and precise control device designed for engineering inspections and outdoor photography. It offers smooth rotation and tilt control and can be connected to work lights, action cameras, etc.
- Dimension: 108mm*100mm
- Weight: 950g
- Material: PETG 3D Printing Materials
- Voltage: DC5-35V

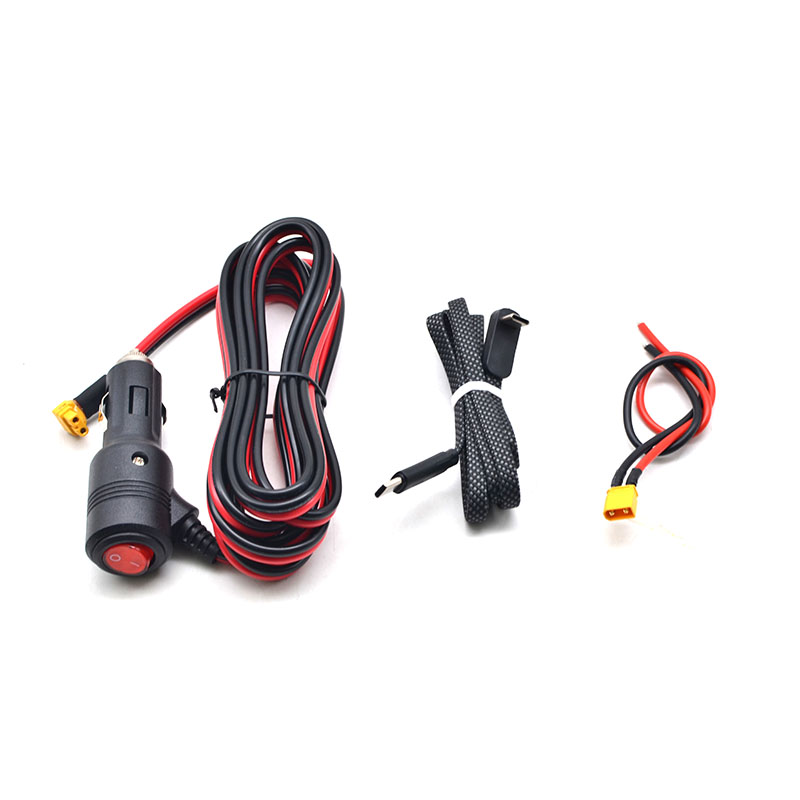

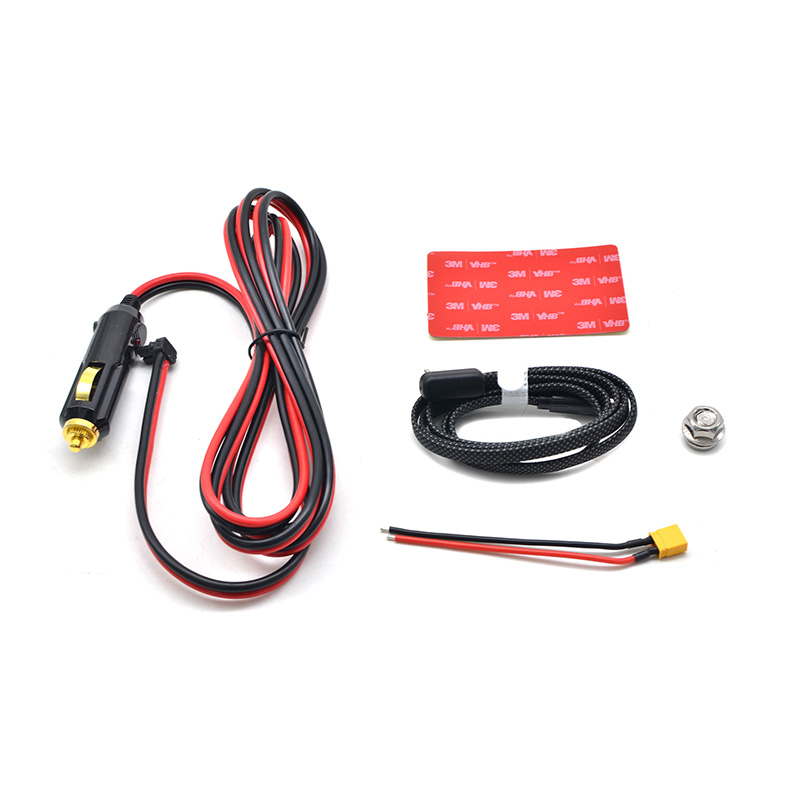

- Power: Cigar plug power supply; Light Power: 100W
- Rotation Angle: 270 degrees horizontal, 120 degrees vertical.
- Load Capacity: less than 1KG
- Remote Control Distance: 10m
- Mounting: 5pcs Magnet
- 5V Power Supply Port: Used for charging or powering small devices.
- Waterproof: IP67

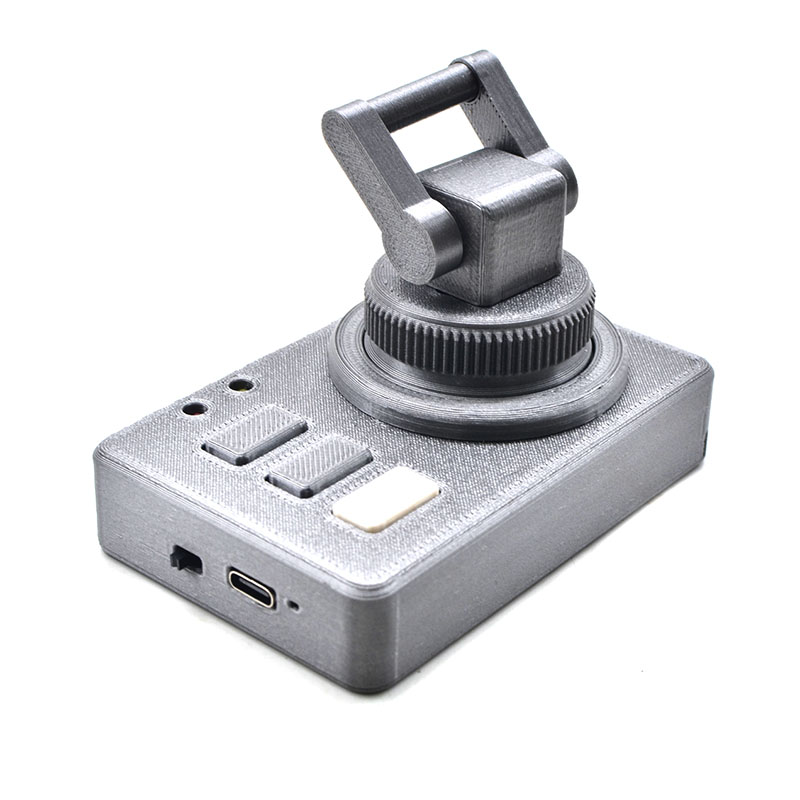

ON/OFF: Located on the side of the controller. Pushing the lever down turns the device on. After powering on, it enters manual mode. When the remote control and pan/tilt unit are connected, the indicator light flashes red.
Button 1: SET button.
--Press Button 1; the green or yellow light flashes. Rotate the knob and joystick to select the desired position, then press Button 2 to mark it as position 1.
--Continue rotating to the second position and press Button 2 to mark it as position 2.
--This process continues, remembering a maximum of 8 marked positions.
--Finally, press 1 to automatically play the marked position path.
--At this time, rotating the knob to the left slows down the cruise speed; rotating it to the right speeds it up.
Button 2: Memory button
Button 3: Control lights.
| --First press: Steady on; | --Second press: Fast flash; |
| --Third press: Slow flash; | --Fourth press: Off; |
The above functions cycle.
NOTE:
1. Do not forcefully rotate the knob and joystick beyond a certain angle, as this may cause internal components to break;
2. The device has an internal protection mechanism; forgetting to turn off the remote will not cause the battery to over-discharge;
3. Do not start the gimbal with the vehicle, otherwise the excessive voltage surge may damage the components; start the gimbal only after the vehicle is running;

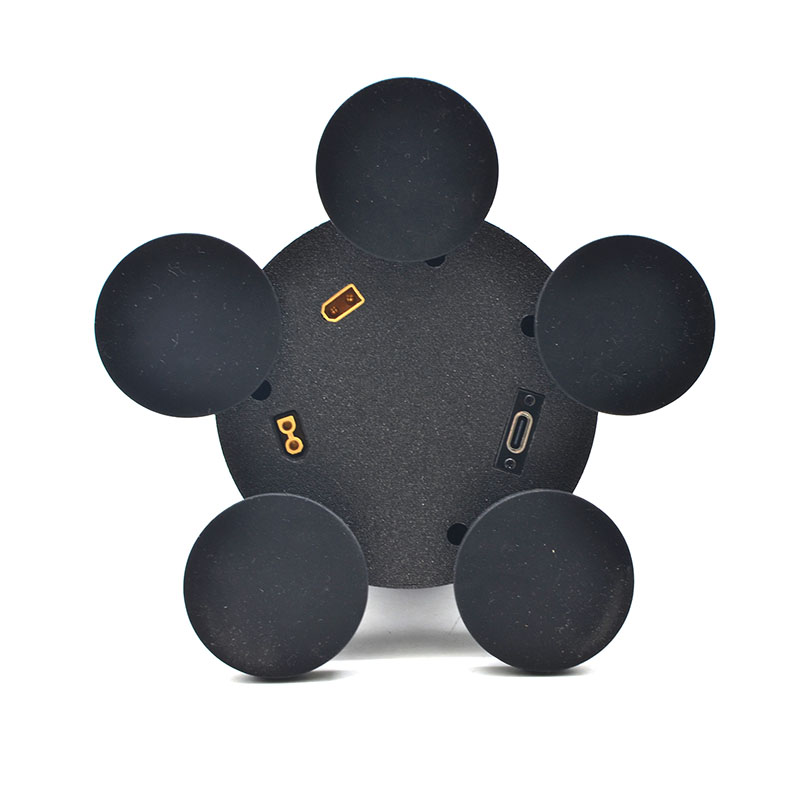

4. If the remote control is out of power, it cannot connect to the gimbal; please charge it promptly.1. Power Interface: The YT-system power input supports DC 5–35V.
2. External Device Power Port: The output voltage matches the input voltage, allowing for the connection of external work lights and other devices.
3. 5V Power Port: Type-C output delivering 5V/2A, designed for powering or charging small devices.
