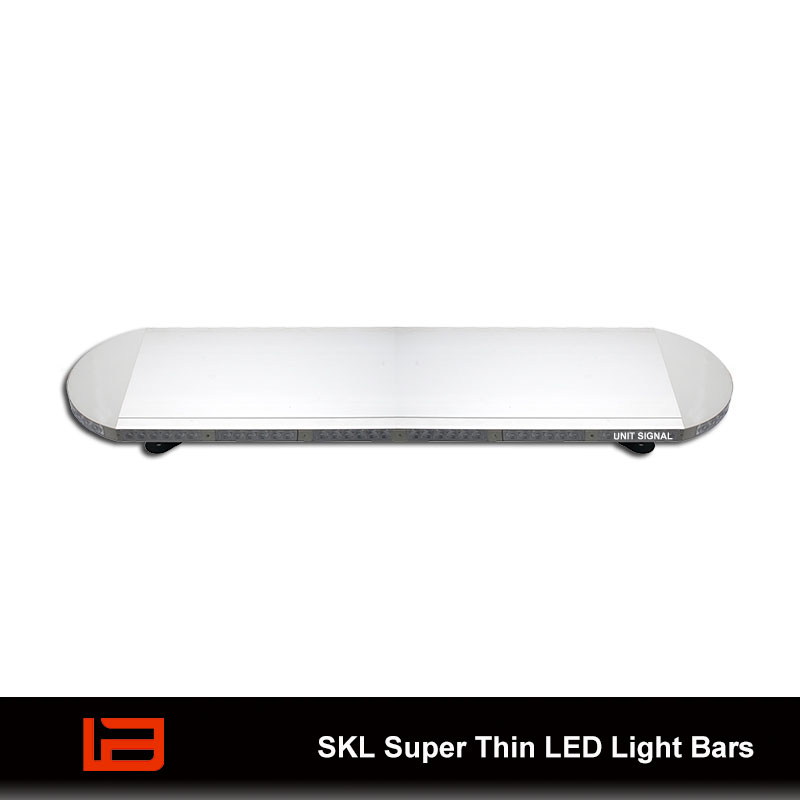

SKL Super Thin LED Waterproof Light Bars
The SKL LED full-size waterproof light bar features 3-watt LEDs with an extremely slim design of 1 inch.
- Input Voltage
- DC12V
- Waterproof
- IP67
- Mounting
- Gutter Mount
BUILT FOR
YOUR APPLICATION.
Features:
The extremely slim design of 1 inch (2.54cm)
Powered by 12V
Single or split-color combo available
3W Super bright LEDs
25 available flash patterns with Pattern Memory
360° High-Intensity Versatile, Multi-Purpose Light Bar
Default with cigar plug
Optional other controllers for choice or hard wired
Takedown, alley lights, arrow light function available
The lifespan of up to 100,000 hours
IP67 Waterproof Exterior Lightbar
Double-layer aluminum alloy top housing, Weather-proof housing
Magnet mount or Gutter Mount
Warranty:
2 Year Warranty on All Emergency Vehicle Lighting Products
Included in Box:
SKL full-size light bar
4m of cable with default cigar plug provided
Gutter, brackets
Screws
Owner's Manual
Dimensions:
18”/27”/36”/48”/55” L * 11" W * 4" H (include feet)
Interchangeable/Compatible with:
All automobiles and devices are equipped with a 12 or 24 Volt DC power source.
TECHNICAL
SPECIFICATIONS.
| LED Power | 3W LEDs |
|---|---|
| Lens | TIR |
| LED Lifespan | 100000H |
| Flash Pattern | 25 |
| Input Voltage | DC12V |
| Max Power | / |
| Average Current Draw | / |
| Colour Available | single, split color |
| Ambient Temperature | -40°C~65°C |
| Waterproof | IP67 |
| Product Dimension | 18”/27”/36”/48”/55” L * 11" W * 4" H (include feet) |
| Mounting | Gutter Mount |
| Certifications | ECE R65, R10, and SAE |
| Wire | / |
| Cable Length | 4m |
| Material | Aluminum top housing, UV-resistant PC |
| Net Weight | 11KG |
