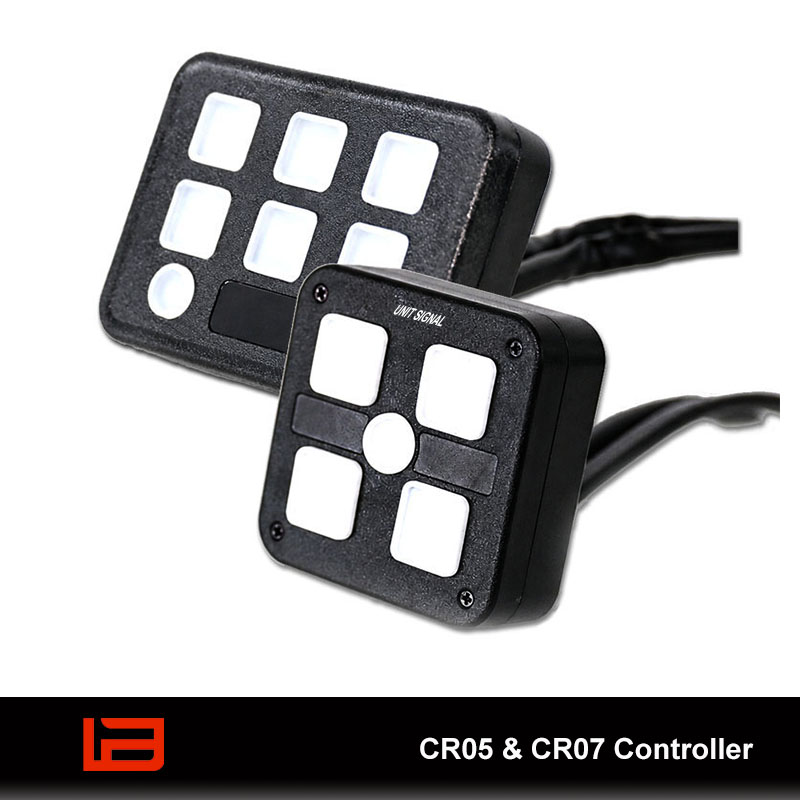

CR05 & CR07 Controller
The CR05 Control System is housed in a compact black enclosure measuring 62×62×25 mm. It operates on a 10–30 V DC supply voltage with a maximum current rating of 20 A. Housed in a compact black enclosure (100×70×20 mm), the CR07 Control System operates on 10–30 V DC with a maximum current of 40 A. It comes equipped with a 300 mm wiring harness and is fully ECE R10 certified. Backed by a 2-year warranty.
- Input Voltage
- 10-30V DC
BUILT FOR
YOUR APPLICATION.
Features:
The CR05 Control System is housed in a compact black enclosure measuring 62×62×25 mm. It operates on a 10–30 V DC supply voltage with a maximum current rating of 20 A. The unit includes a 300 mm wiring harness and carries ECE R10 certification. Backed by a 2-year warranty.
Housed in a compact black enclosure (100 × 70 × 20 mm), the CR07 control system operates on a flexible 10–30 V DC range, making it compatible with various vehicle platforms. It offers robust high-current performance, supporting up to a 5 A output and featuring a 10 A fuse for dependable protection. Engineered for safe and stable operation, the system supports a peak current rating of 40 A. Installation is simplified thanks to the included 300 mm wiring harness. For ultimate peace of mind, the system is fully compliant with ECE R10 electromagnetic compatibility standards and comes with a 2-year warranty.
Warranty:
2 Year Warranty on All Emergency Vehicle Lighting Products
Included in Box:
CR05 & CR07 Controller
3M VHB or suction cup bracket or 3M surface mount VHB sticker
36 types of labels
Owner's Manual
Dimensions:
CR05: 62x62x25 mm;
CR07:100x70x20 mm
Interchangeable/Compatible with:
All automobiles and devices equipped with a 12 or 24 Volt DC power source.
TECHNICAL
SPECIFICATIONS.
| Input Voltage | 10-30V DC |
|---|
| Dimension | CR05: 62x62x25 mm; CR07:100x70x20 mm |
|---|---|
| Number of buttons | CR05: 5; CR07:7 |
| Button Modes | Momentary or ON/OFF |
| Maximum current output | CR05: 20A; CR07:40A |
| Output configuration | CR05: 4 x 5 A outputs; CR07: 2 x 10 A outputs / 4 x 5 A outputs |
| Fuse rating | CR05: 20A; CR07:40A |
| Cable harness length | 300mm |
| Mounting options | 3M VHB, suction cup bracket, 3M surface mount VHB sticker |
| Optional Labels | 36 types |
| Protecting Rating | IP67 |
| Operating Temperature | -30°C to +70°C |
| Output wiring | AWG 16 for 10 A outputs / AWG 18 for 5 A outputs |
| Input wiring | AWG 14 red wire/ AWG 16 black wire |
| Dimming Function | Automatic night-time backlight dimming |
| Warranty | 2 years |
