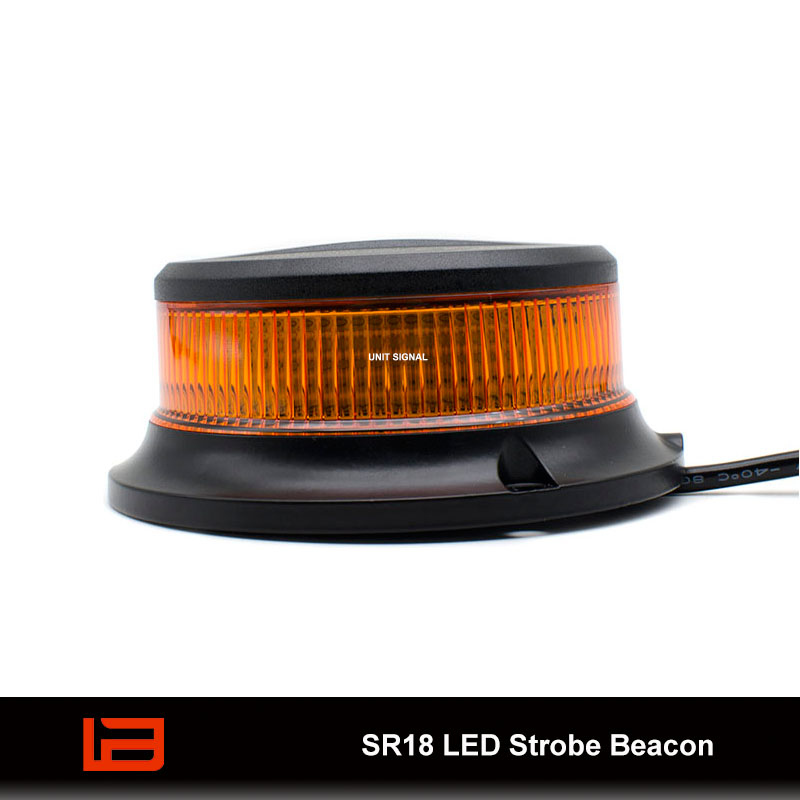

SR18 LED Strobe Beacon
Multi-units can be synced together. SR18 LED Warning Beacon offers 360 visibility and 7 flash patterns. Compliant with ECE R65 TA1 and TB1.
- Input Voltage
- 12-24V
- Waterproof
- IP67
- Mounting
- Permanent mount,Magnet mount, Flexi Din mount
BUILT FOR
YOUR APPLICATION.
Features:
Powered by 12-24V
18Pcs 1W LEDs
Multi-units can be synced together (20pcs)
Low profile design
Single colors LEDs available (Amber, Blue, Red, White, Green)
Amber, Blue, Red, Clear, and Green lens available
7 flash patterns provide
IP67 waterproof designed
Permanent mount, Magnet mount, or Flexi Din mount available
Lifespan of up to 100,000 hours
UV-stabilized lens resists fading
Meet and exceed ECE R65 TA1; TB1; ECE R10; UKCA; CISPR 25 Class 3.
Warranty:
2 Year Warranty on All Emergency Vehicle Lighting Products*
Included in Box:
1 x SR18 Warning Beacon
Bolts
Instruction
Dimensions:
⌀ 112mm*46mmH
Interchangeable/Compatible with:
All automobiles and devices are equipped with a 12 or 24 Volt DC power source.
TECHNICAL
SPECIFICATIONS.
| LED Power | 18PCS 1W |
|---|---|
| Lens | Amber, Blue, Red, Clear, and Green lens available |
| LED Lifespan | 100000H |
| Flash Pattern | 7 |
| Input Voltage | 12-24V |
| Max Power | 18W |
| Average Current Draw | / |
| Colour Available | single color; |
| Ambient Temperature | -30--+70℃ |
| Waterproof | IP67 |
| Product Dimension | ⌀ 112mm*46mmH |
| Mounting | Permanent mount,Magnet mount, Flexi Din mount |
| Certifications | ECE R65 TA1; TB1; ECE R10; UKCA; CISPR 25 Class 3. |
| Wire | / |
| Cable Length | 3m of cable with cigarette plug provided |
| Material | UV-resistant PC |
| Net Weight | 350g |
