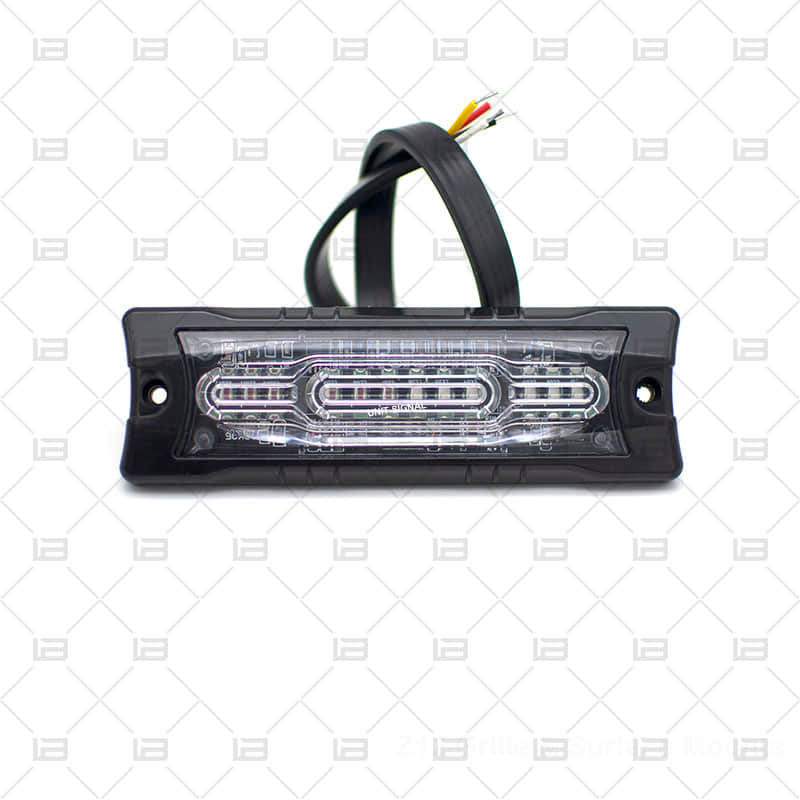

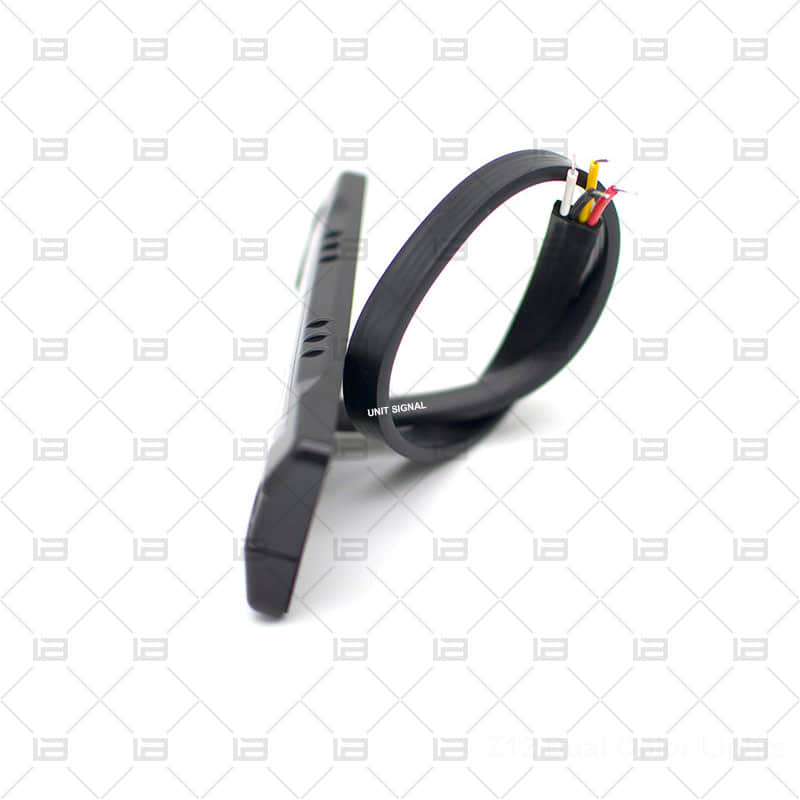

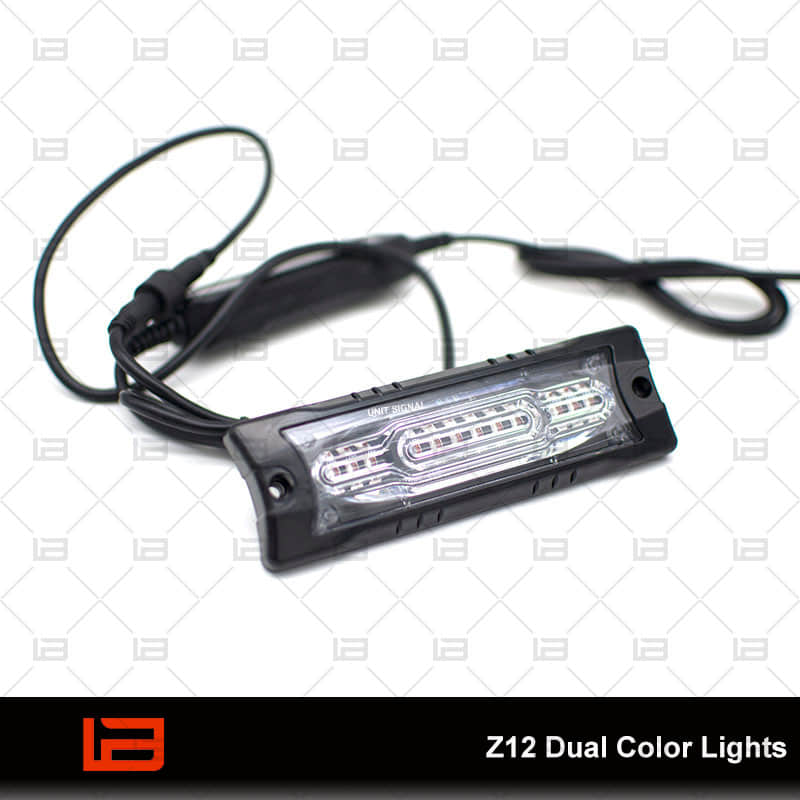

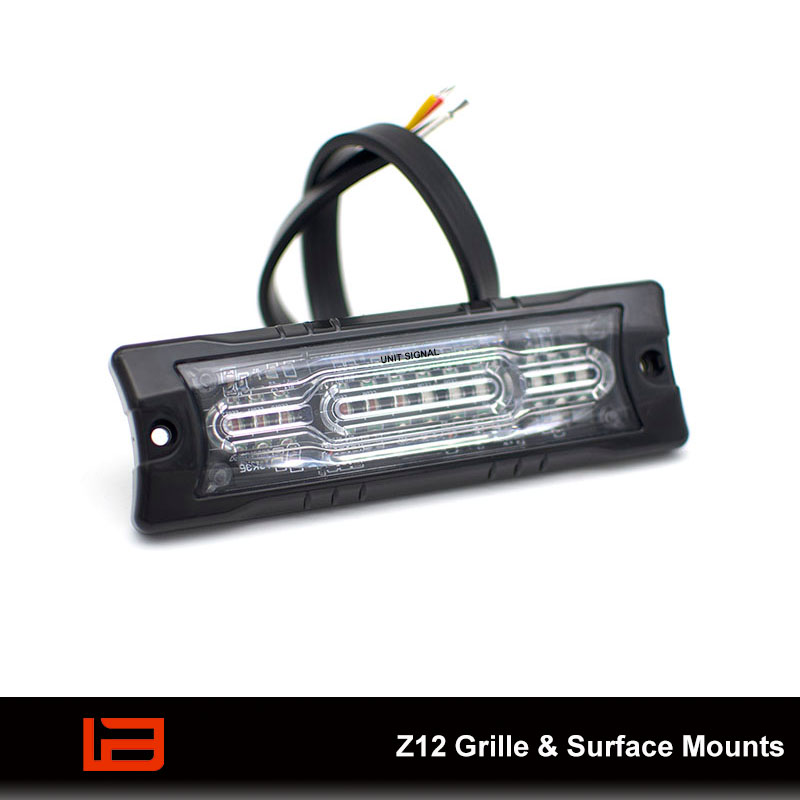

Z12 LED Grille and Surface Mount Lights

Z12 LED Grille and Surface Mount Lights

The Z12 is New light with low-profile thickness. Heavy-duty aluminium housing with weatherproof and vibration resistant design.

Request A Quote


Powered by 12-24V

12Pcs 3W high intensity LED

16 Flash Patterns with Pattern Memory

Synchronization between multiple units

Low-profile thickness, Compactly sized for versatile application

Heavy-duty aluminium housing

IP-67 Standard

Weatherproof and vibration resistant design

Black flange included for protection and stealth

Lifespan of up to 100,000 hours

Meets or Exceeds ECE R65 Standards



5 Year Warranty on All Emergency Vehicle Lighting Products


Included in Box:

Z12 Grille and Surface LED Light

Surface Mount Black Flange


2 Screws

Owner's Manual



132.8mm L* 45mm W* 10.2mm H


Interchangeable/Compatible with:

All automobiles and devices equipped with a 12 or 24 Volt DC power source.

  • LED Power: 12PCS 3W
  • Lens: /
  • LED Lifespan: 100000H
  • Flash Pattern: 16
  • Input Voltage: 12-24V
  • Max Power: 36W
  • Average Current Draw: /
  • Colour Available: R W A G B
  • Ambient Temperature: -30--+70℃
  • Waterproof: IP67
  • Product Dimension: 132.8mm L* 45mm W* 10.2mm H
  • Mounting: Surface mount
  • Certifications: ECE R65 XA1
  • Wire: 1 pos, 1 Neg, 1 sync, 1 pattern,1 alt
  • Cable Length: 20cm
  • Material: Aluminum alloy base,UV-resistant PC
  • Net Weight: /
