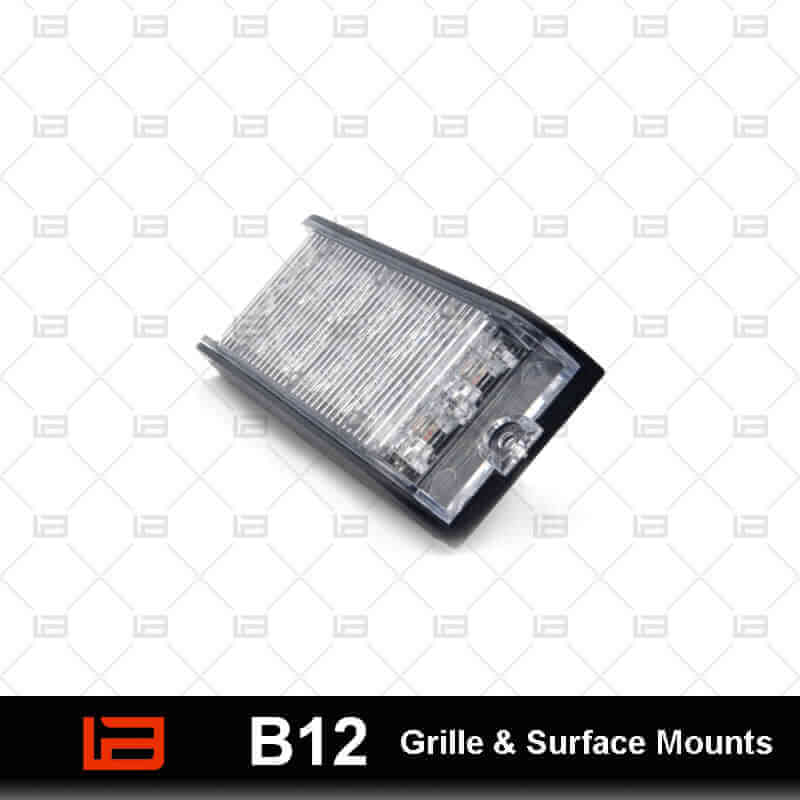

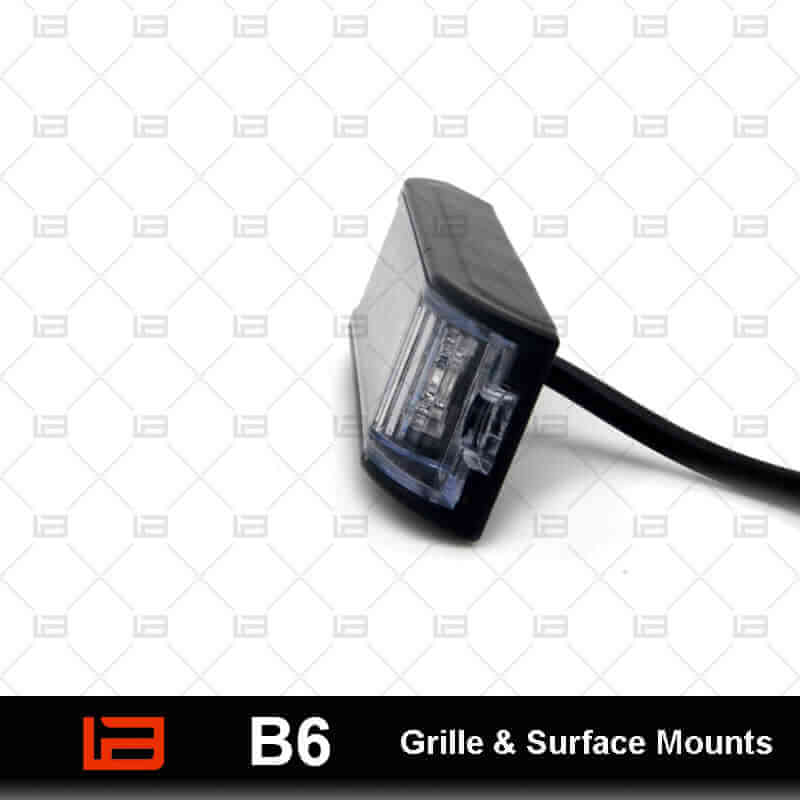

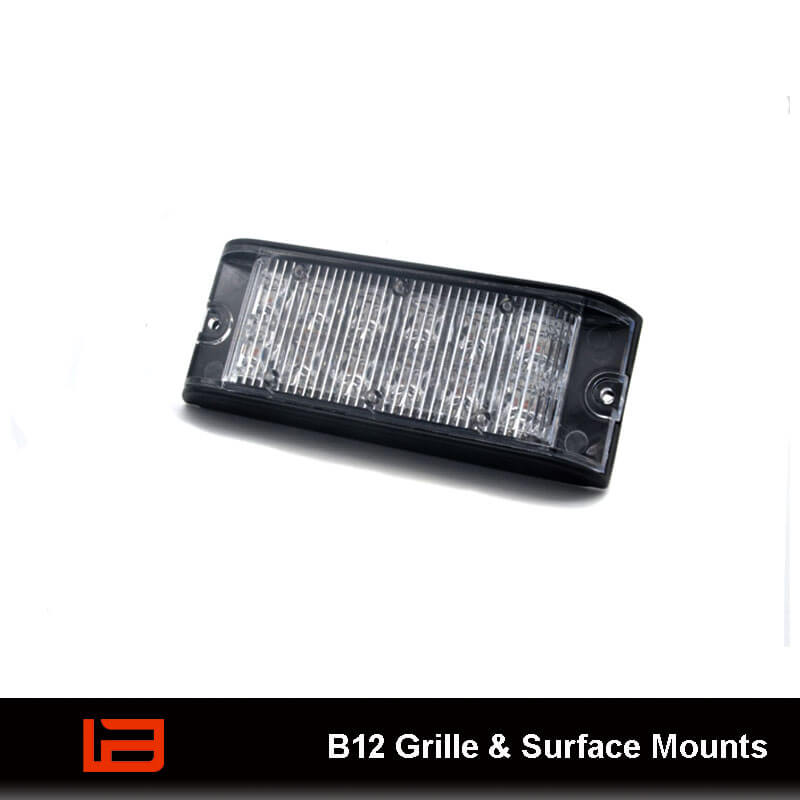

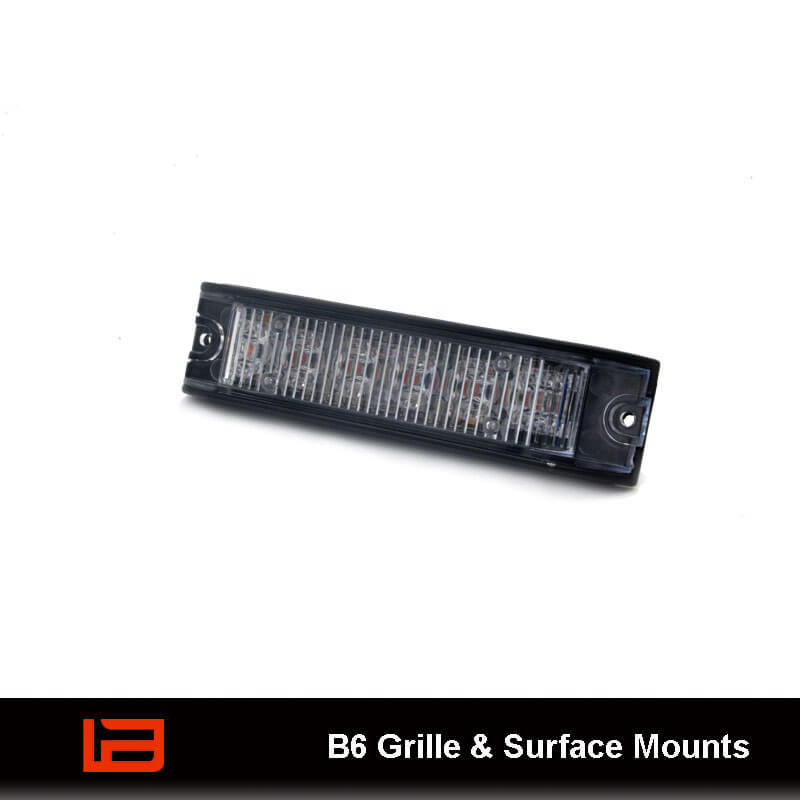

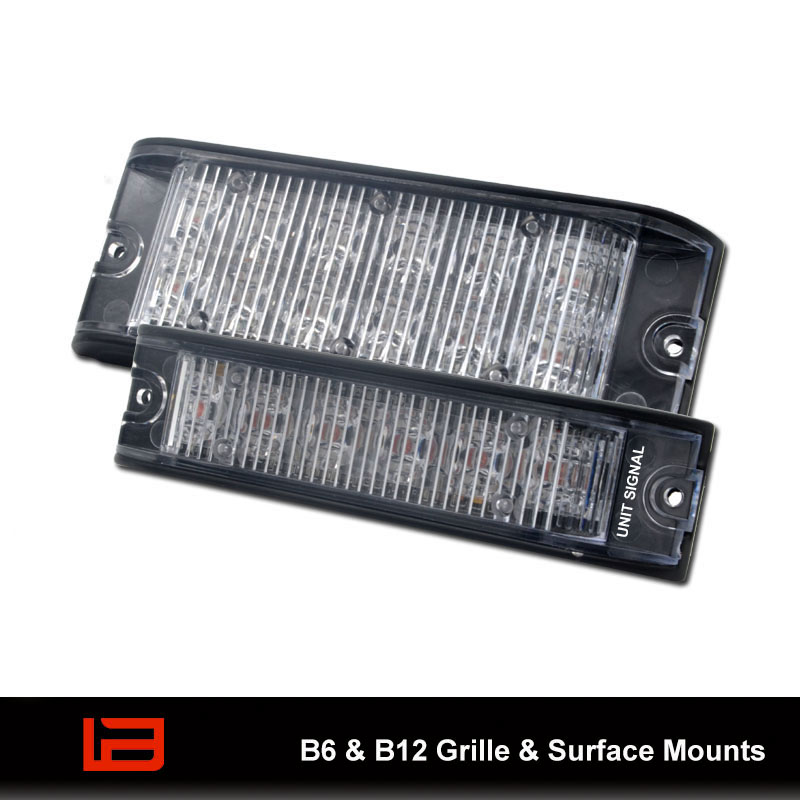

B6 & B12 LED Surface Mount Lights
B6/B12 strobe light is a compact module with 6/12Pcs 3-watt super bright LEDs. Wrap around side optic for wider visibility. 19 Flash Patterns, Available in single or split color.
- LED Power: 6/12PCS 3W
- Lens: TIR
- LED Lifespan: 100000H
- Flash Pattern: 16
- Input Voltage: DC 9 -30V
- Max Power: 18/36W
- Average Current Draw: /
- Colour Available: R B A W G
- Ambient Temperature: -30--+70℃
- Waterproof: IP67
- Product Dimension: B6: 130mm L *30mm W*17mm H; B12: 130mm L*47mm W*18mm H
- Mounting: Surface mount
- Certifications: /
- Wire: 4 core
- Cable Length: 20cm
- Material: Aluminum alloy base,UV-resistant PC
- Net Weight: 105g / 145g
Features:
Powered by DC 9 -30V
6/12 high intensity LED with optic lenses
Extra steady on functions for vehicle identification or illumination.
19 Flash Patterns with Pattern Memory (please watch the video)
Wrap around side optic for wider visibility.
Low profile for discreet mounting.
Simultaneously or alternately between multiple units
Aluminum base for heat dissipation.
IP-67 Standard
Lifespan of up to 100,000 hours
Warranty:
2 Year Warranty on All Emergency Vehicle Lighting Products*
Included in Box:
B6 strobe light
1 Gasket
2 Screws
Owner's Manual
Dimensions:
B6: 130mm L *30mm W*17mm H
B12: 130mm L*47mm W*18mm H
Interchangeable/Compatible with:
All automobiles and devices equipped with a 12 or 24 Volt DC power source.
