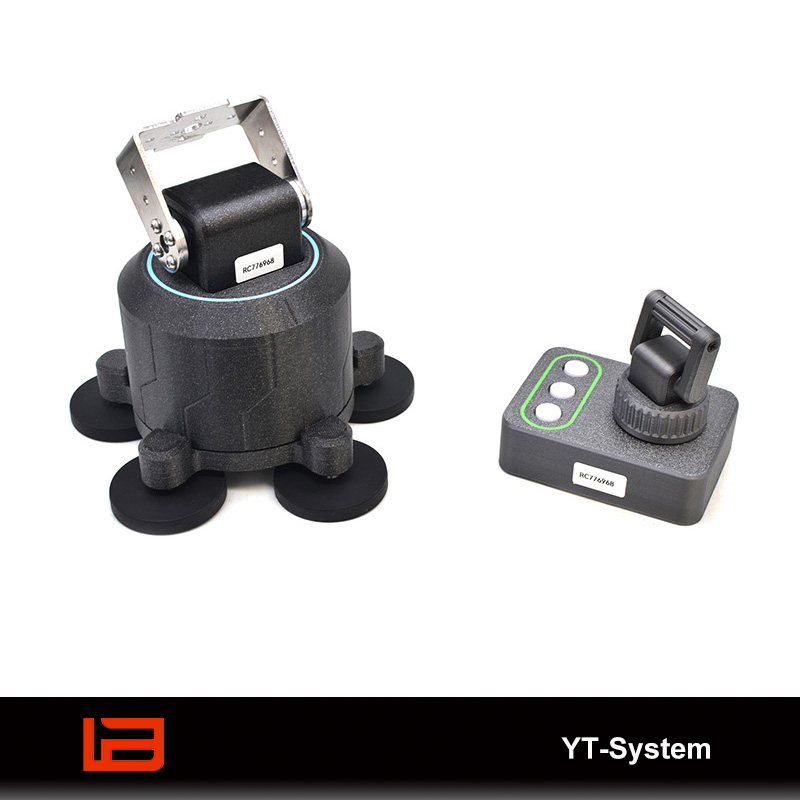

YT-system with remote control
This remote-controlled vehicle-mounted gimbal is a highly stable and precise control device designed for engineering inspections and outdoor photography. It offers smooth rotation and tilt control and can be connected to work lights, action cameras, etc.
- Dimension: 120mm*95mm
- Weight: 620g
- Material: PETG 3D Printing Materials
- Voltage: DC12-24V
- Power: Cigar plug power supply
- Rotation Angle: 270 degrees horizontal, 180 degrees vertical.
- Load Capacity: less than 1KG
- Remote Control Distance: 50m
- Mounting: 5pcs Magnet
- 5V Power Supply Port: Used for charging or powering small devices.
- Waterproof: IP67

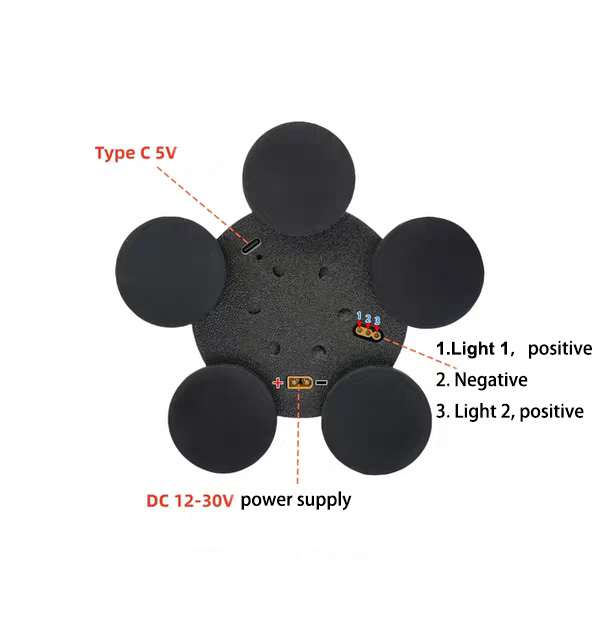

1. Power Interface: The YT-system power input supports DC 12–24V.
2. External Device Power Port: The output voltage matches the input voltage, allowing for the connection of external work lights and other devices.
3. 5V Power Port: Type-C output delivering 5V/2A, designed for powering or charging small devices.

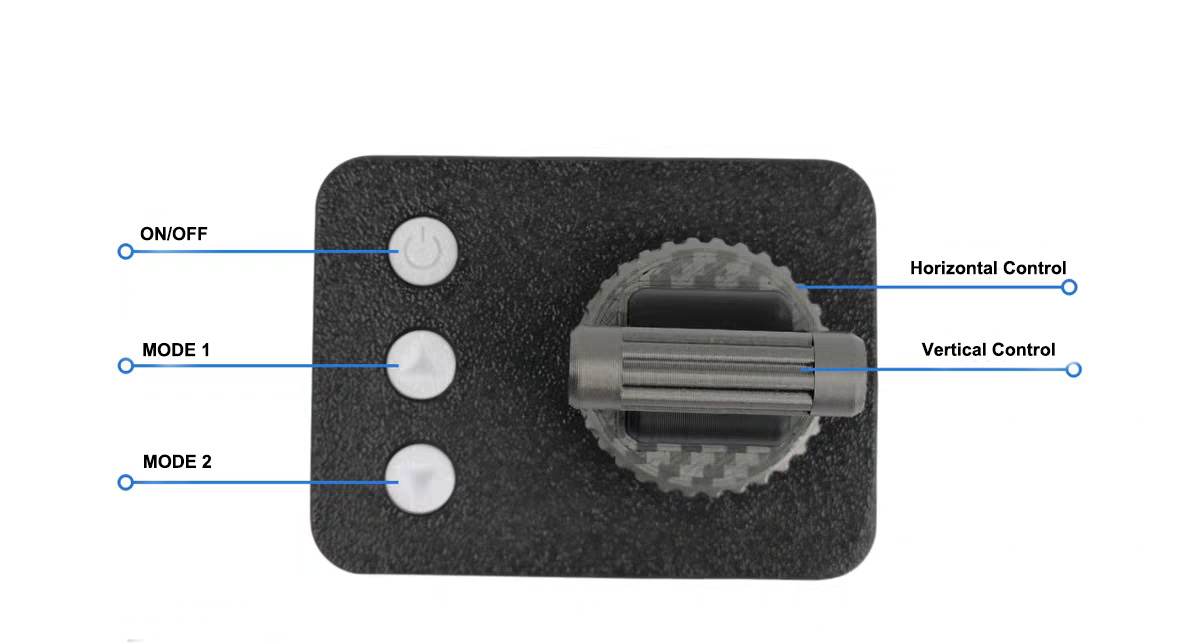

1. On/Off: Short-press to power on; long-press for 3 seconds to power off. Upon powering on, the device enters Manual Mode; once the remote controller establishes a connection with the gimbal, the indicator light turns green. Short-press the "Mode 2" button to toggle through the work light's flash patterns (Steady On, Slow Flash, Fast Flash).
2. Mode 1: Manual Mode. Long-press the "Mode 1" button for 3 seconds to enter Cruise Mode; the indicator light turns blue. The control knob can be used to adjust the cruise speed (this function requires pre-marking specific waypoints).
3. Mode 2: Cruise Mode. Long-press the "Mode 2" button for 3 seconds to enter Marking Mode; the indicator light turns yellow. After panning or tilting the gimbal to align with a target waypoint, short-press the "Mode 2" button to mark that position. The remote controller will emit a "beep" sound to confirm that the waypoint has been successfully marked, after which the system automatically returns to Cruise Mode. While in Cruise Mode, long-press the "Mode 1" button to switch back to Manual Mode.
4. If all three buttons flash red simultaneously, it indicates that the remote controller's battery voltage is low; please recharge the device.
