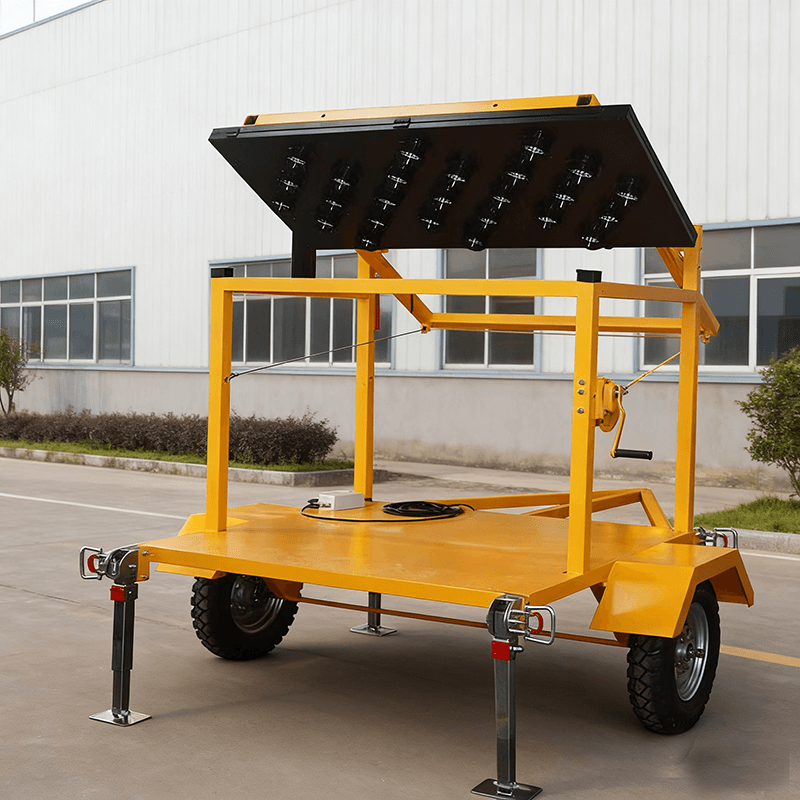

Trailer Mounted Solar LED Arrow Board
Arrow board with brackets (with actuators) or without brackets. Arrow board with 15 LED Clusters or with 25 LED Clusters.
- Type: Folding, Solar, folding led arrow board
- Size: Arrow Board Size:1500x750mm
- Color: Yellow/customized
- Power supply: Solar
- Sign Size: 2766*1350mm
- Arrow Board Size: 1500x750mm
- Material: Aluminum
- Lamp diameter: 100mm
- LED type: Epistar
- LED barrel QTY: 25pcs
- Solar panels: 18v 80w
- Certificate: Ce Rohs
- Visual distance: 1000m
- Overall size:: 2712 (excluding solar panel size)
Arrow board with brackets (with actuators) or without brackets
Available with or without orange warning beacons
Arrow board with 15 LED Clusters or with 25 LED Clusters
Customized service available
Guide plate and trailer housing are sheet metal chassis, electrostatic spray
Trailer spray yellow, flat surface reduces glare, and is completely waterproof
Compression design: using 13" 165/70R3 tires with 4 jacks, lifting and bearing resistance hfor eavy tonnage and above.
Lifting function: Manual rotary lifting, which can manually control the angle of the guide plate
Solar panel: different power and size solar panels can be configured according to the intensity and size of different light sources in different regions
Lens bead: guide brand light heads with 100 new lamp tube *15 / lamp heads*25, with lens higher brightness, stronger warning effect
