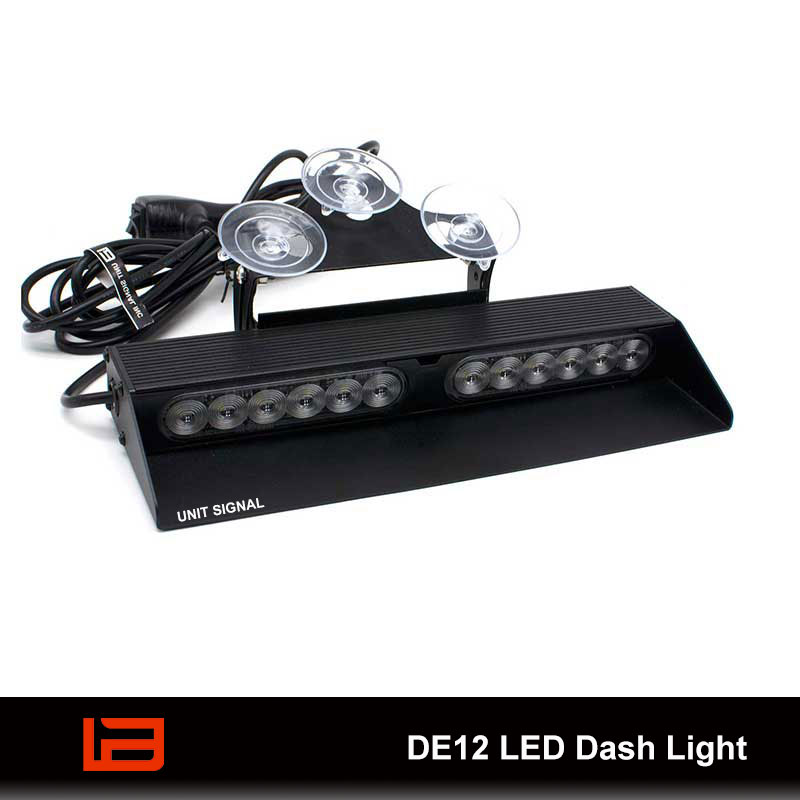

DE12 LED Dash Light

DE12 LED Dash Light

DE12 dash light uses two EG6 modules and adjustable brackets. It can be easily mounted to the vehicle's Front/Rear windshield.

Request A Quote

Features:

DE12 dash light uses two EG6 modules and accessories.

Adjustable brackets, suitable for various applications, can be easily mounted to a vehicle's Front/Rear windshield.

The glare shield is adjustable and will not block the driver's vision

Compliant with ECE R65 and SAE J595 certificated

Powered by DC 10 -33V

12 Pcs or 24Pcs 3W LEDs

Single color or Dual-color available

Built-in 20 selectable flash patterns for single color version

Pattern Memory available

Long life LEDs rated to 100,000 hours of reliable operation

Fully encapsulated for moisture, vibration, and corrosion resistance

Reverse polarity protection



Warranty:

5 Year Warranty on All Emergency Vehicle Lighting Products*



Included in Box:

DE12 dash light

Aluminum bracket with suction cup mount

Screws

Owner's Manual



Dimensions:

250mm L X 29mm H



Interchangeable/Compatible with:

All automobiles and devices equipped with a 12 or 24 Volt DC power source.

  • LED Power: 3W LEDs
  • Lens: Fresnel lens
  • LED Lifespan: 100000H
  • Flash Pattern: 20 or 16
  • Input Voltage: DC 10-33V
  • Max Power: 36W
  • Average Current Draw: /
  • Colour Available: single or dual color
  • Ambient Temperature: -30--+70℃
  • Waterproof: IP67
  • Product Dimension: 250mm L X 29mm H
  • Mounting: Suction cup mount
  • Certifications: ECE R65 and SAE
  • Wire: /
  • Cable Length: 3m of cable with cigarette plug provided
  • Material: Aluminum alloy base,UV-resistant PC
  • Net Weight:
